We are proudly offering Hydro-Spray branded equipment to the self-serve car washes of Pennsylvania.
JUMP TO:
Self-Service SINGLE BAY SYSTEM

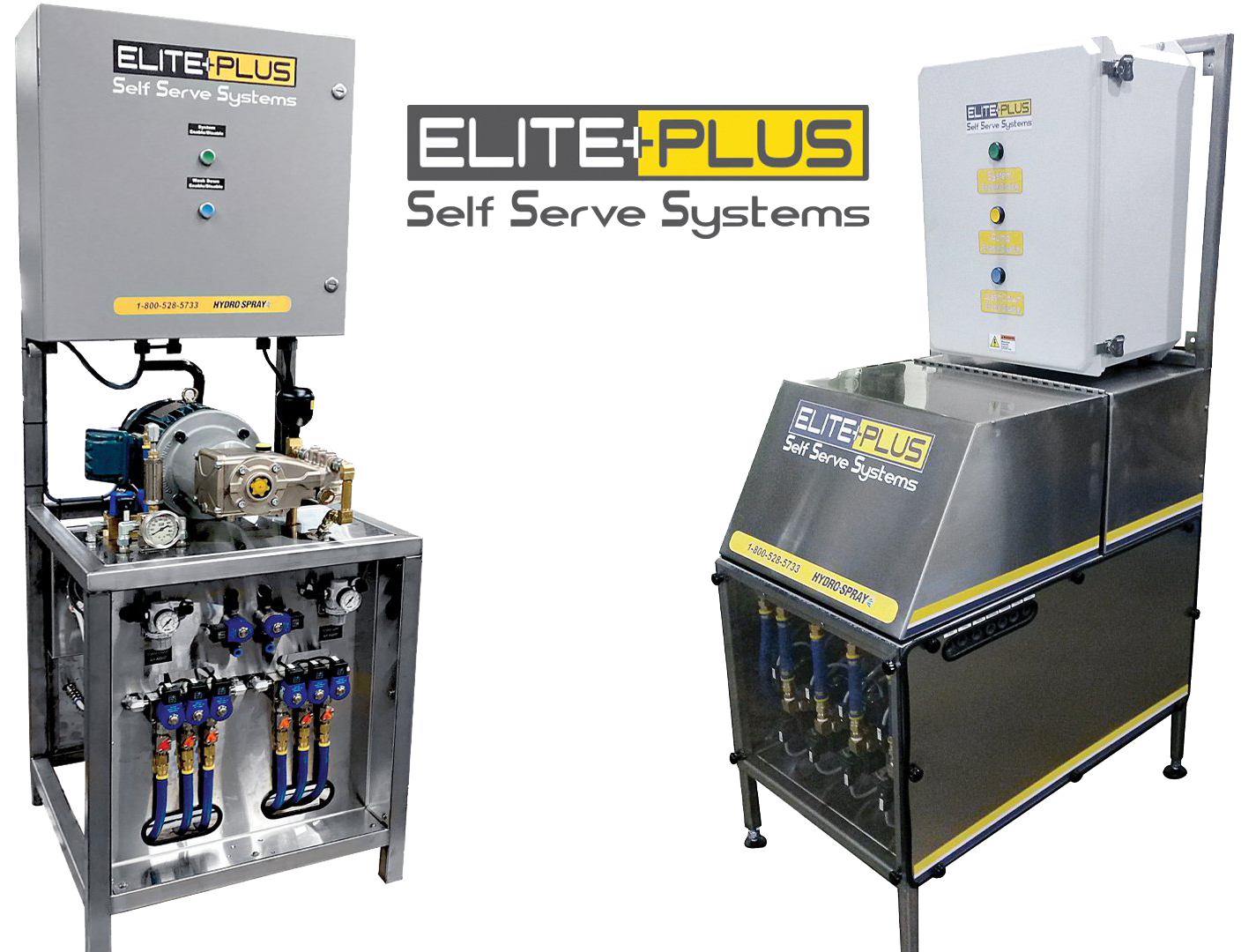

Hydro-Spray's Elite Plus system offers unparalleled performance and efficiency. This tankless One-Bay, One-Pump self serve car wash system is easy to use, easy to install, and easy to repair. The plug-and-play design was designed by car wash operators, for car wash operators and is proven to increase your wash counts.
ELITE PLUS OPTIONS:
Multi Pressure Pumps
- General Pump
- CAT Pump
- Giant Pump
Controls
- Temperature Control Card
- Network Remote Access
- Inlet Water Supply Regulators
Multi Pressure Delivery
- High Pressure Soap
- High Pressure Wax
- High Pressure Undercarriage
Components
- Foam Generators
- Check Valve Assemblies
- Spare Parts Kit
- Caster Kit
- Install Kit
ELITE PLUS AVAILABLE ACCESORIES:
- Ceiling Mount Booms
- Ceiling Mount Boom Packages
- Meter Boxes
- Full Color Bay Signage
- Wall Mount Mat Clamps
- Undercarriage Cleaning Tool
- Reverse Osmosis Systems (Spot Free Rinse)
- Water Softeners
- Tankless Water Heaters
- Air Compressors
- Change Machines
- Vending Machines
ELITE PLUS FEATURES:
PLUG & PLAY
The Hydro-Spray "Plug & Play" functionality makes installation as simple as a commercial kitchen appliance. The Elite Plus removes the need for complicated and unreliable backroom engineering.
CUSTOMIZABLE
It's controlled by a PLC driven VFD allowing the user to customize delivery pressures, change water supply and reduce operating costs. All while delivering unparalleled performance to exceed your customers expectations.
EFFICIENT
With its downstream chemical injection design and compact profile, this tankless One Bay/One Pump system offers expandable services and unmatched efficiency. The Elite Plus does not require holding tanks or multiple delivery pumps.
ELITE PLUS SPECIFICATIONS
Electrical:
- 230V / 3HP/60Hz/13.6A
- 20A Circuit Breaker
Compressed Air:
- Inlet 3/8"OD Polyflow
- 3-SCFM per unit
- 80 PSI Max. per unit
Dimensions:
- 24"x28"x68" (WxDxH)
Water:
- Hot Inlet 3/4" NPT
- SGPM per unit
- 40-60 PSI Regulated
- Max. Temp. 130F
- Cold Inlet 3/4" NPT
- SGPM per unit
- 40-60 PSI Regulated
- Spot-Free Inlet 3/4" NPT
- 3GPM per unit
- 40-60 PSI Regulated
- Can be gravity supplied
SElF-SERVE CAR WASH EQUIPMENT
Hydro-Spray's Elite Pro system offers unparalleled performance and efficiency. This tankless self-serve car wash system is easy to use, easy to install, and easy to repair and can be used for different car wash applications.
A one bay/one pump design (made possible by an advanced VFD motor), the Elite Pro eliminates the cost associated with multiple pumps and removes the need for complicated check valves. It also reduces the overall number of components in your car wash and uses high quality, stainless steel construction designed to reduce required maintenance.
ELITE PRO OPTIONS:
- CAT Pump
- Temperature Control Card
- High Pressure Soap
- High Pressure Wax
- High Pressure Undercarriage
- Inlet Water Supply Regulators
- Remote Access
- Tank Heater (HP Soap)
- Tank Heater (Pre-Soak)
- Low Water Cut Off
- LP Foam Generators
- Multi Pressure Check Valve Assembly
- Caster Kit
- Spare Parts Kit
- Install Kit
ELITE PRO AVAILABLE ACCESSORIES:
- Ceiling Mount Booms
- Ceiling Mount Boom Packages
- Meter Boxes
- Full Color Bay Signage
- Wall Mount Mat Clamps
- Undercarriage Cleaning Tool
- Reverse Osmosis Systems (Spot Free Rinse)
- Water Softeners
- Tankless Water Heaters
- Air Compressors
- Change Machines
- Vending Machines
ELITE PRO FEATURES:
FLEXIBLE
The nine onboard Standard Adjustable Functions give you flexibility and control over your wash... which include the following: high-pressure rinse, high or medium-pressure soap, high or medium-pressure wax, medium or low-pressure spot free rinse, low-pressure presoak, low-pressure wheel & tire, low-pressure bug remover, low-pressure foam wax, and low-pressure foam brush.
PLUG & PLAY
The Elite Pro’s "plug and play" design allows you to get connected quickly and easily. It arrives pre-plumbed, pre-wired and fully labeled. Installation is quick and simple. And once you are up and running, the Elite Pro’s substantial feature set includes a Wash Down program that allows you to clean the floor and walls of your bay with the press of a button.
RESULTS
Whether you’re just getting started in the car wash industry or a seasoned operator, the Elite Pro is designed to minimize costs, maximize profits, and give your customers a stellar user experience. It's designed to save you space while being easy to maintain with common spare parts to make on-going service a breeze.
ELITE PRO SPECIFICATIONS:
Specifications:
- 2 to 6 Bay Configurations
- 4 GPM Pump, 5HP Motor Per Bay
- Relay Controlled 24vac
- Variable Frequency Drive Driven
- 230V/3PH/60Hz/13.6A (Per Bay)
- 120V/1PH/60Hz/6.0A (Per System)
- Dimensions: 85” x 35.5” x 77.25” (W x D x H)
Outlet Connections:
- Multi Pressure Outlet ⅜” FNPT
- Air Assist Outlet ⅜” OD Polyflow
- Foam Gun Outlet ⅜” FNPT
- Air Assist Outlet ⅜” OD Polyflow
- Foam Brush Outlet ⅜” FNPT
- Air Assist Outlet ⅜” OD Polyflow
Requirements:
- 3-Phase 20 Amp Circuit Breaker Per Bay
- 120V 15 Amp Circuit Breaker Per System
- Hot Water Inlet ¾” NPT @ 40-55 PSI Regulated
- Cold Water Inlet ¾” NPT @ 40-55 PSI Regulated
- Spot Free Water Inlet ¾” NPT 40-55 PSI Regulated
- Air Supply Inlet ⅜” OD Polyflow @ 5.5 CFM Per Bay
- Weep Inlet ⅜” OD Polyflow Per Bay
- Transfer Pump Required to Fill Spot Free Water Reservoir
Max Water Supply Temp:
- Recommended up to 110 F
- Max Water Temp 130 F
Operating Water Pressure:
- 150 PSI to 1500 PSI
Water Filtration:
- 50 Micron Recommended
VFD MULTI PRESSURE PUMP STAND
Hydro-Spray's Value Line Pro Self-Serve Car Wash System offers unparalleled performance and efficiency. This tankless One-Bay, One-Pump self serve car wash system is easy to use, easy to install, and easy to repair. The plug-and-play design was designed by car wash operators for car wash operators and is proven to increase your wash counts.
VALUE PRO OPTIONS:
- CAT Pump
- Wall Mount Rinse Tank Assembly
- Wall Mount Chemical Tank Assemblies
- Free Standing Tank Assembly
- Inlet Water Supply Regulators
- Soft Hose Plumbing Kit
- Multi Pressure Check Valve Assembly
- Caster Kit
- Spare Parts Kit
- Install Kit
VALUE PRO AVAILABLE ACCESSORIES:
- Ceiling Mount Booms
- Ceiling Mount Boom Packages
- Meter Boxes
- Full Color Bay Signage
- Wall Mount Mat Clamps
- Undercarriage Cleaning Tool
- Reverse Osmosis Systems (Spot Free Rinse)
- Water Softeners
- Tankless Water Heaters
- Air Compressors
- Change Machines
- Vending Machine
VALUE PRO FEATURES:
SAVE ENERGY
The VFD motor ensures each product is delivered at an optimal pressure setting. The VFD control box runs the electric motor at variable RPMs to efficiently deliver your presoak and bug cleaner.
INTUITIVE
Status indicators on the face of the Value Pro system help you diagnose and solve issues quickly, saving you time and getting your wash running smoothly again...which saves you money.
RESULTS
The Value Pro has 7 inlet functions, variable pressure settings, and a weep water saver valve to be an all-around system for any self-serve car wash bay.
VALUE PRO SPEFICATIONS:
SPECIFICATIONS:
- 4 GPM Pump, 5HP Motor
- 24vac Relay Controlled
- Variable Frequency Drive
- 230V/3PH/60Hz/13.6A
- Dimensions: 18” x 28” x 60” (W x D x H)
OUTLET CONNECTIONS:
- Multi Pressure Outlet ⅜” FNPT
- Air Assist Outlet ⅜” OD Polyflow
MAX WATER SUPPLY TEMP:
- 110 F (Recommended)
- Max Water Temp 130 F
Requirements:
- 20 Amp 3-Phase Circuit Breaker
- Fresh Water Inlet ¾” Hose Barb Gravity Supply Tank
- HP Soap Inlet ¾” Hose Barb Gravity Supply Tank
- HP Wax Inlet ¾” Hose Barb Gravity Supply Tank
- Pre-Soak Inlet ½” Hose Barb Gravity Supply Tank
- Wheel & Tire Inlet ½” Hose Barb Gravity Supply Tank
- Spot Free Water Inlet ¾” Hose Barb Gravity Supply Tank
- Option 1 Inlet ½” Hose Barb Gravity Supply Tank
- Air Supply Inlet ⅜” OD Polyflow @ 5.7
OPERATING WATER PRESSURE:
- 150 PSI to 1500 PSI
WATER FILTRATION:
- 50 Micron
HIGH PRESSURE SELF-SERVE PUMP STAND
The Value Line has innovative design and installation options perfect for almost every bay and business. You will need a wall mount tank for this system and we can supply all the accessories needed to get your wash operational. Overall, this is a low maintenance, low cost wash option - easy to run and operate - spraying soap, rinse, and wax for years to come.
VALUE LINE OPTIONS:
- Wall Mount Rinse Tank Assembly
- Wall Mount Chemical Tank Assemblies
- Free Standing Tank Assembly
- Inlet Water Supply Regulators
- Soft Hose Plumbing Kit
- Multi Pressure Check Valve Assembly
- Caster Kit
- Spare Parts Kit
- Install Kit
VALUE LINE AVAILABLE ACCESSORIES:
- Ceiling Mount Booms
- Ceiling Mount Boom Packages
- Meter Boxes
- Full Color Bay Signage
- Wall Mount Mat Clamps
- Undercarriage Cleaning Tool
- Reverse Osmosis Systems (Spot Free Rinse)
- Water Softeners
- Tankless Water Heaters
- Air Compressors
- Change Machines
- Vending Machines
VALUE LINE FEATURES:
PLUG & PLAY
Pre-plumbed, pre-wired and ready to install... our Value Line is the entry level industry standard when it comes to self-serve car wash equipment. It has a single phase motor and features a three way valve setup for hot washing and cold rinsing.
EASY TO MAINTAIN
This high pressure self-serve pump stand is designed for less maintenance while saving you space in the equipment room. With a resettable maintenance time and wash counter, you'll always be on top of delivery the best service to your customers.
VALUE LINE SPECIFICATIONS:
3-PHASE SPECIFICATIONS:
- Available 1-Bay & 2-Bay Configuration
- 4 GPM Pump, 5HP Motor Per Bay
- 230V/3PH/60Hz/13.6A Per Bay
- Dimensions: 18” x 28” x 60” (W x D x H)
REQUIREMENTS:
- 3-Phase 20 Amp Circuit Breaker
- 1-Phase 30 Amp Circuit Breaker
- Hot Water Inlet ¾” Hose Barb Gravity Supply Tank
- Cold Water Inlet ¾” Hose Barb Gravity Supply Tank
- HP Soap Valve ¼” Hose Barb Gravity Supply Tank
- HP Wax Valve ¼” Hose Barb Gravity Supply Tank
- Weep Water Connection ⅜” Polyflow
WATER FILTRATION:
- 50 Micron
1-PHASE SPECIFICATIONS:
- Available 1-Bay & 2-Bay Configuration
- 4 GPM Pump, 5HP Motor Per Bay
- 230V/1PH/60Hz/21.0A Per Bay
- Dimensions: 18” x 28” x 60” (W x D x H)
OUTLET CONNECTIONS:
- High Pressure Outlet ⅜” FNPT
MAX WATER SUPPLY TEMP:
- 110 F (Recommended)
- Max Water Temp 130 F
OPERATING WATER PRESSURE:
- Up to 1500 PSI (General Pump)
- Up to 1100 PSI (CAT Pump)
GET A QUOTE
FOR YOUR OWN HYDRO-SPRAY SYSTEM
We can help you repair an existing car wash, install a new car wash, or get parts and components for your machines. Below is a list of just some of the self-serve car washes we have parts on hand for. Don't see yours listed below? Give us a call! We have great connections in the industry and we will help you find the equipment and wash support services you need.
