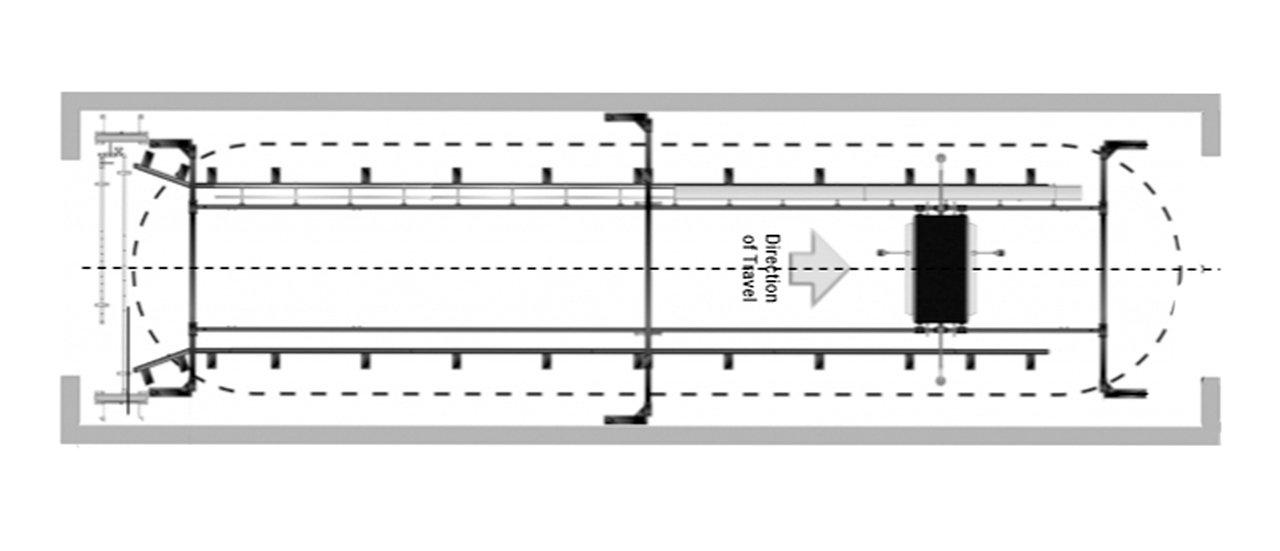

Belanger's state-of-the-art touch free automatic large vehicle wash system.

With its overhead gantry system, V-Max delivers unmatched performance, reliability and superior cleaning results, all with minimal maintenance requirements. The V-Max is designed with state-of-the-art technology including sonic vehicle sizing and greased-for-life bearings. Add in Belanger's standard equipment features, such as aircraft-grade aluminum and high-density plastics, and it is easy to see why the V-Max provides unprecedented ease-of-use and lifecycle reliability.

The V-Max is the only large vehicle wash system that lets you program up to four different wash package options at one time. So whether you are using the V-Max to help maintain your own fleet's appearance and longevity, or you will be adding a Point of Purchase (POS) interface and opening a retail large vehicle wash facility, the V-Max will provide the exact wash options you need to succeed. In fact with the V-Max's HMI program interface, washes can also be managed off-site via the Internet so you can track frequency of washes and types of washes selected.

Available in three system configurations, the V-Max can easily provide a quality touch-free wash to both a 30 foot dump truck or a 75 foot tractor trailer, and everything in-between, in as little as 3-6 minutes.

Equipment Shown:

Bay Length: 87'10"

Bay Height: 18'

Bay Width: 17'6"

Physical Building Requirements:

Minimum Bay Length: 62'

Minimum Bay Height: 17'10"

Minimum Bay Width: 17'6"

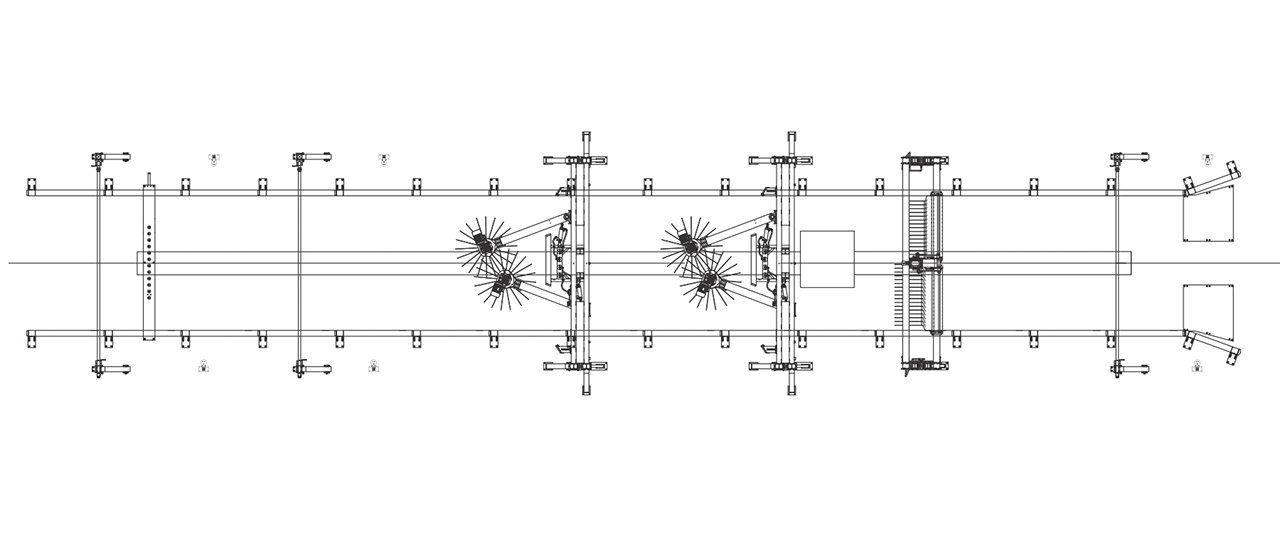

A Great Transit Wash Needs To Deliver…

Durable Equipment delivers a long service life and reliable operation, making the most of your investment for the long haul.

Effective Cleaning ensures your buses always look their best-impressing passengers and the public alike.

Efficient Operation saves power, water, and money-helping conserve resources while preserving your bottom line.

Safe Washing protects your rolling stock by cleaning without damage. Of course, patented innovations makes all of this possible.

This dedication to a great transit wash is evident in every Belanger wash component-starting with the framework. In fact, our fully-boxed I-Beam supports are extruded from 6061 aircraft-grade aluminum. This material is weldable, workable and stronger than structural steel-with a ‘yield strength’ of over 40,000 PSI.

Which means the ‘backbone’ of a Belanger transit wash is extremely durable, and able to withstand repeated operational stresses. What’s more, it’s compatible with all common wash chemicals- and corrosion resistant ‘through and through’, unlike competitors’ steel supports that use a galvanized surface coating.

Equipment Shown:

Bay Length: 80'

Bay Height: 30'

Bay Width: 23'

Physical Building Requirements:

Minimum Bay Length: Consult Belanger

Minimum Bay Height: 17'10"

Minimum Bay Width: 17'6"

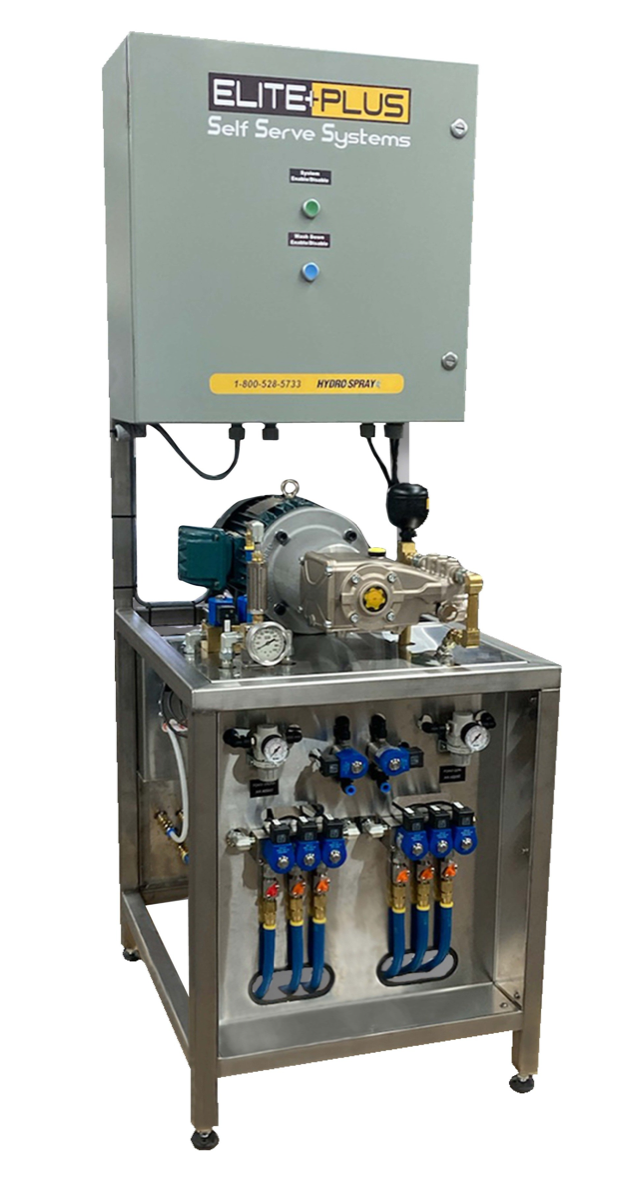

Features:

Service Friendly/Install Friendly Design

5HP 3-Phase HD Inverter Rated Electric Motor

General Platinum Series Pump

Plug & Play Design

Direct Drive Pump & Motor

Heavy Duty Stainless Steel Frame

Adjustable Legs for Leveling

Service Friendly Design

Precise Chemical Delivery

Tankless Injector Design

Programmable PLC Control

VFD Driven

Bay Lock Out (Enable/Disable Feature)

Bay Wash Down (Enable/Disable Feature)

One Bay, One Pump Design

Multi Pressure Applications

Rinse

Spot Free Rinse

*Soap

*Wax

*Undercarriage

*Indicates Optional Function

Low Pressure Foaming Applications

Pre-Soak

Wheel & Tire Cleaner

Bug Remover

Carnauba Wax

Clear Coat Protectant

Foam Brush

Pressure Regulator

Pulsation Dampener

Integrated Weep or Blow Down

Multi Pressure Smart Air Regulator

Network Ready

SD Card Compatible

Resettable Maintenance Timer/Alert

Resettable Wash Counter

Specifications:

4 GPM Pump, 5HP Motor

PLC Controlled

Variable Frequency Drive

230V/3PH/60Hz/13.6A

Dimensions: 24” x 28” x 68” (W x D x H)

Requirements:

20 Amp Circuit Breaker

Hot Water Inlet ¾” NPT @ 40-55 PSI Regulated

Cold Water Inlet ¾” NPT @ 40-55 PSI Regulated

Spot Free Water Inlet ¾” NPT 40-55 PSI Regulated

Air Supply Inlet ⅜” OD Polyflow @ 5.7

Spot Free Water Can be Gravity Fed Under Certain Conditions

Outlet Connections:

Multi Pressure Outlet ⅜” FNPT

Air Assist Outlet ⅜” OD Polyflow

Foam Gun Outlet ⅜” FNPT

Air Assist Outlet ⅜” OD Polyflow

Foam Brush Outlet ⅜” FNPT

Air Assist Outlet ⅜” OD Polyflow

Weep/Blow Down Outlets ⅜” OD Polyflow

Max Water Supply Temp:

Recommended up to 110 F

Max Water Temp 130 F

Operating Water Pressure:

150 PSI to 1500 PSI

Water Filtration:

50 Micron

Options:

CAT Pump

Temperature Control Card

High Pressure Soap

High Pressure Wax

High Pressure Undercarriage

Inlet Water Supply Regulators

Remote Access

Low Water Cut Off

LP Foam Generators

Multi Pressure Check Valve Assembly

Caster Kit

Spare Parts Kit

Install Kit

Accessories:

Ceiling Mount  Booms

Ceiling Mount  Boom Packages

Meter Boxes

Full Color Bay Signage

Wall Mount Mat Clamps

Undercarriage Cleaning Tool

Reverse Osmosis Systems (Spot Free Rinse)

Water Softeners

Tankless Water Heaters

Air Compressors

Change Machines

Vending Machines

FEATURES:

Key Base Features:

- True One Bay, One Pump Design

- Tankless-Integrated Chemical Injection

- Multi-Pressure Delivery System

-Smart Logic VFD Control

Key Package Features:

- 9 Industry Standard Functions

- 3 Port Supply Inlet

- 3 Port Discharge Outlet

- 8 Chemical Options

- Plug & Play Design

* Optional High Pressure Underbody Function Available

SYSTEM SPECIFICATIONS:

- 208/204 VOLT 3 PHASE 20 AMP CIRCUIT

SYSTEM REQUIREMENTS

Equipment Room Space Requirements, 2-5 Bay = 77.25" H x 35.5" D x 73" L

Equipment Room Space Requirements, 6 Bay = 77.25" H x 35.5" D x 85" L

Power Supply = 208/230 Volt AC, 3 phase, 20 Amps Per Bay

Power Supply = 120 Volt AC, 1 phase, 20 Amps Per System

Fresh Water Supply, 3/4" Hot/Cold 20 GPM Per System

Compressed Air Supply, 5-6 CFM Per System

Motor Starter/Relay Optional if Using Electric Float Switch for Spot Tank Fill

Enclosed Climate Controlled Equipment Room

SYSTEM SPECIFICATIONS

Free Standing Stainless Steel Frame

Pre-Plumbed and Pre-Wired

Omron PLC

Device Net Communication I/O

Four Switch Router

Pump Motor Direct Drive Options

General Pump/WEG Motor

CAT Pump/Baldor Motor

Arimitsu Pump/Baldor Motor

Plug and Play Wash Bay Connections

3/4" Hot and Cold Water Supply Ready

1/4" Compressed Air Supply Ready

Seven Hydro-Minder Proportioning Valves

Two Mechanical Float Valves

One Electric Fload Switch

208/230 Volt, 3 phase Motor Control with Overload Protection

     (Per Number of Bays)

120 Volt, Single Phase System Control Voltage

24 Volt AC Meter Box Control Voltage

     (Primary Transformer Supplied)

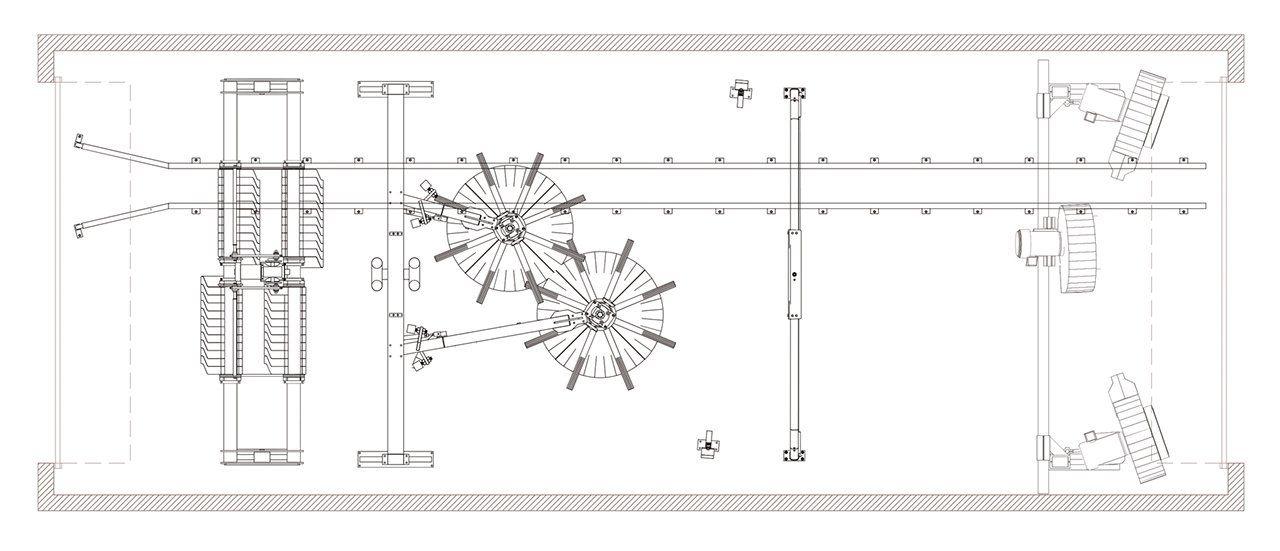

The Severe-Duty, Drive-Thru Car Wash

The insta-KLEEN™ by Belanger is a severe-duty, drive-thru car wash system designed with the needs of car dealers, rental car agencies and other fleet customers in mind.

Built on the strength of our aircraft-grade aluminum framework, the insta-KLEEN™ stands the test of time with a minimum of moving parts. Where motion is required, the system relies on automotive-grade bearings or lube-free pivot points – for minimal maintenance needs and easy servicing.

Unlike rollover systems that must move the entire wash unit over each vehicle, making multiple passes up and down floor-mounted train tracks, the insta-Kleen framework is a pillar of strength that remains in place for the ultimate in structural integrity.

Of course, cars are designed to move, and do so in a highly controllable way. The insta Kleen leverages this fact, standing ready to wash any vehicle driven through its guiderails. This drive-thru format is unparalleled in its throughput, commonly delivering a clean car every 60 seconds.

Equipment Shown:

Bay Length: 35'

Bay Height: 12'

Bay Width: 14'

Physical Building Requirements:

Minimum Bay Lenght: 25' *

Minimum Bay Height: 12' *

Minimum Bay Width 14' *

*Recommended Minimum size without Dryers.

You Choose the Trim Level That Best Meets Your Needs:

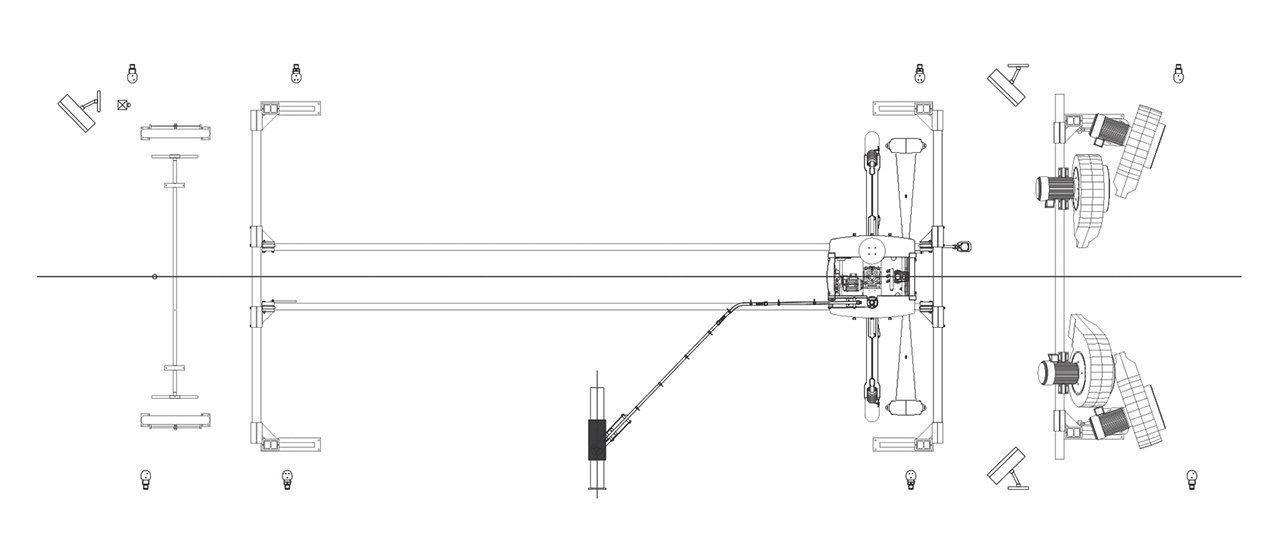

The Kondor is available in 8 distinctive Trim Levels –4 Trim Levels for the one-arm (KL1) ) as well as 4 Trim Levels for the two-arm (KL2). With branding and color options, the combinations are immense. Each offering its own unique look and features. Based on your bay, budget, and business, there is a Kondor that is sure to meet your exact needs.

The ultra-compact carriage head creates an inviting and clear bay to boost your customers’ comfort and confidence. All Kondor models feature narrow overhead rails that form an ‘inverted runway’—along with a treadle-free design—to help customers get into a straight position with ease. An additional feature of the two-arm Kondor model is its ‘field goal post’ shape that helps drivers center their vehicles quickly and safely. Plus, the Kondor can wash large dually trucks, which considerably expands your potential customer base.

Equipment Shown:

Bay Length: 40'

Bay Height: 11'8"

Bay Width: 16'

Physical Building Requirements:

Minimum Bay Length: 32' *

Minimum Bay Height: 10'3" *

Minimum Bay Width: 12'3" *

*Recommended minimum with Dryers.
